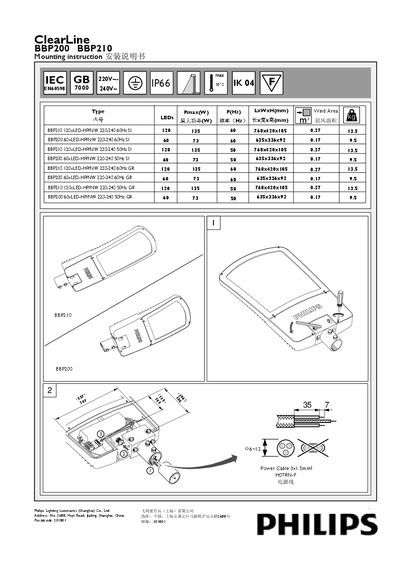

Philips ClearLine BBP200/210 Installation Manual

ClearLine BBP200 BBP210 Mounting instruction

Brand: Philips
Category: lighting LED
Document type: Installation Guide
Language: English
Pages: 3
File format: PDF
File size: 406 KB
Published: 12 March, 2012
Updated: 30 September, 2023
MD5 checksum: 9915E53B68AF33538CEF8BEDB4968D2E
PDF: Philips ClearLine BBP200/210 Installation Manual PDF

About this manual

This guide provides step‑by‑step mounting and wiring instructions for the Philips ClearLine BBP200 and BBP210 LED luminaires. It includes details on power cable connections, recommended installation positions, and compliance with the latest IEC electrical regulations.

The manual also explains how to configure the ESC02 dimmer controller using its 4‑position dip switches, how to adjust the on‑time (tl) and off‑time (t2) timers, and the safety procedures for replacing the power supply or MCPCB module.

What's inside

Mounting instruction
Power cable wiring
Dimmer setting (ESC02)
Dip switch timer configuration
Luminaire installation position
Replacing power supply
Replacing MCPCB module

Specifications

BBP210 Voltage	220‑240 V
BBP210 Frequency	60 Hz
BBP210 Dimensions (L×W×H)	768 × 420 × 105 mm
BBP210 Power	120 W
BBP200 Voltage	220‑240 V
BBP200 Frequency	60 Hz
BBP200 Dimensions (L×W×H)	635 × 336 × 92 mm
BBP200 Power	60 W
Power cable colors – Earth	Yellow‑green
Power cable colors – Live	Brown
Power cable colors – Neutral	Blue

Frequently asked questions

What must be done before replacing the power supply or LED module?

Turn off the main power before performing any replacement of the power supply or MCPCB module.

What are the colour codes for the power cable connections?

The power cable uses Yellow‑green for Earth, Brown for Live, and Blue for Neutral.

What are the recommended dimensions for the BBP210 luminaire?

The BBP210 measures 768 mm × 420 mm × 105 mm (L×W×H).
