The Halolite Versatile Mini Halogen Floodlight is a versatile mini floodlight suitable for both indoor and outdoor lighting. It is necessary to switch off the electricity supply before installation or maintenance and maintain a minimum distance of 1 meter between the luminaire and objects. The fitting is electrically insulated and requires external earthing. It complies with IEC60598 standards and is classified as Class I insulation. The document provides information on different models and power ratings of the floodlight.

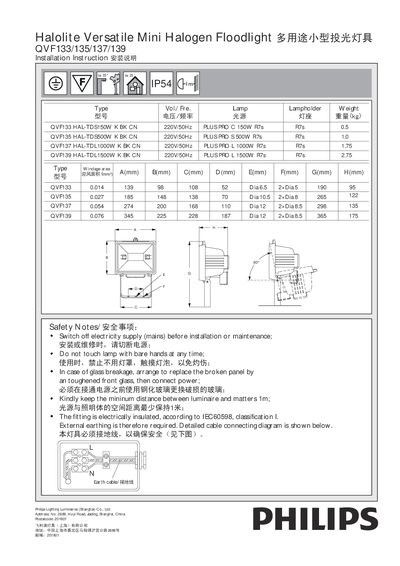

This manual provides step‑by‑step instructions for installing the Philips QVF133/135/137/139 versatile mini halogen floodlights. It includes safety precautions such as switching off the mains supply before any work and handling the lamp with care.
The guide details mounting requirements, recommended clearances from walls and other objects, wiring diagrams, and environmental limits (IP54 rating, temperature limits). It also lists the technical data for each model, including voltage, lamp type, wattage, weight and dimensions.
| Voltage | 220 V |
|---|---|
| Frequency | 50 Hz |
| Lamp type (QVF133) | PLUSPRO C 150W R7s |
| Lamp type (QVF135) | PLUSPRO S500W R7s |
| Dimensions (QVF133) A×B×C | 139 mm × 98 mm × 108 mm |
| Dimensions (QVF135) A×B×C | 185 mm × 148 mm × 138 mm |
| Dimensions (QVF137) A×B×C | 274 mm × 200 mm × 168 mm |
| Dimensions (QVF139) A×B×C | 345 mm × 225 mm × 228 mm |
| IP Rating | IP54 |
Switch off the electricity supply (mains) before installation or maintenance.
Yes, the fitting is suitable for both indoor and outdoor installation.
Keep a minimum distance of 50 cm from walls.
The floodlight has a weatherproof rating of IP54.
