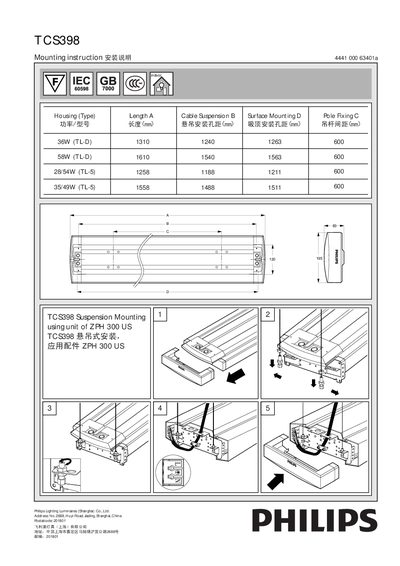

Philips TCS398 Installation Guide

This instruction manual introduces the installation of Philips TCS398 luminaires, including surface mounting, pole mounting and continuous mounting.

Brand: Philips
Category: lighting LED
Document type: Installation Guide
Language: English
Pages: 3
File format: PDF
File size: 809 KB
Published: 12 March, 2012
Updated: 30 September, 2023
MD5 checksum: 9EEA7E57AFFEE924418C8109884F8DA2
PDF: Philips TCS398 Installation Guide PDF

About this manual

The Philips TCS398 luminaire can be installed using three mounting methods: surface mounting, pole mounting, and suspension mounting. Each method includes specific dimension references for housing type, cable suspension length, surface mounting distance, and pole fixing distance.

The guide also provides safety instructions, such as ensuring a qualified electrician performs the installation, complying with the latest IEC electrical regulations, and shutting off power before changing the lamp. Note that the pole mounting unit is not supplied by Philips.

What's inside

Mounting instruction
Surface Mounting
Pole Mounting
Suspension Mounting
Installation Safety

Specifications

Housing type 36W (TL-D) length A	1310 mm
Housing type 36W (TL-D) cable suspension B	1240 mm
Housing type 36W (TL-D) surface mounting D	1263 mm
Housing type 36W (TL-D) pole fixing C	600 mm

Frequently asked questions

Is the pole mounting unit supplied by Philips?

No, the pole is not provided by Philips.

What must be done before changing the lamp?

The power supply must be shut off before changing the lamp.
