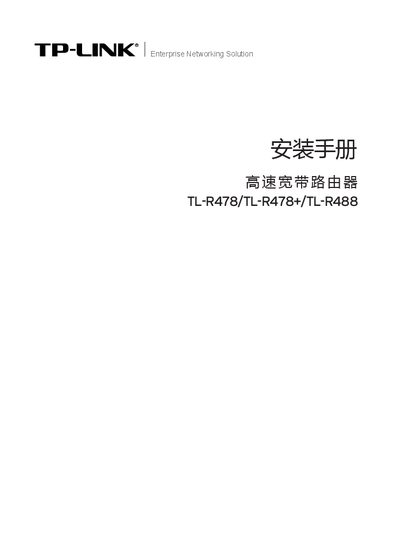

The High-Speed Broadband Router Installation Manual mainly introduces the hardware characteristics, installation methods and precautions of TL-R478/TL-R478+/TL-R488 routers.
This guide introduces the TL‑R478 series routers, describing their hardware features, installation steps, and safety precautions. It includes detailed instructions for mounting the device, connecting WAN/LAN cables, and powering the router.
The document also explains how to access the router’s web management interface, configure network settings, and resolve common issues. Technical specifications such as port counts, power requirements, and environmental limits are provided in the appendix. This manual is written in Chinese.
| WAN ports | 1 (TL‑R478), 2 (TL‑R478+), 4 (TL‑R488) |
|---|---|
| LAN ports | 4 (TL‑R478), 8 (TL‑R478+), 1‑4 (TL‑R488) |
| Power input | 100‑240V, 50/60Hz, 0.3A |
| Operating temperature | -40 °C to 70 °C |
| Dimensions (L×W×H) | 250 mm × 158 mm × 44 mm |
TL‑R478 has 1 WAN and 4 LAN ports; TL‑R478+ has 2 WAN and 8 LAN ports; TL‑R488 has 4 WAN and 1‑4 LAN ports.
