The TD-8620 ADSL User Terminal is a ADSL User Terminal with ADSL2+ technology from TP-Link. It supports multiple network protocols, is easy to set up, and is the best choice for personal users, homes, offices and small businesses to access the Internet.

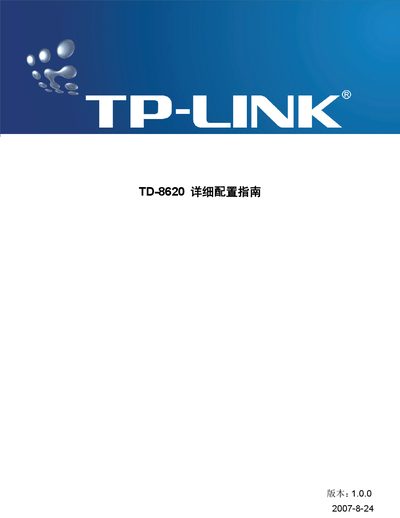

This service manual provides detailed information for the TP‑Link TD‑8620 ADSL modem, including hardware overview, specifications, and step‑by‑step installation instructions. It also contains configuration guidance for LAN, WAN, and DSL settings as well as troubleshooting tips.
The document includes a FAQ section that addresses common issues such as resetting the device and checking line status, helping technicians quickly resolve problems in the field.
| LAN Interface | 10/100 Mbps (RJ45) |
|---|---|
| Ethernet Ports | 10Base‑T, 100Base‑TX |
| Physical Dimensions (SMB RF) | 165 mm × 108 mm × 28 mm |
| Operating Temperature | -40 °C to 70 °C |
Press the reset button as described in the manual (RESET: fiz. AREREKED RARE).
The line status is shown as LINE: 884335) MODEM #0 in the status section.
