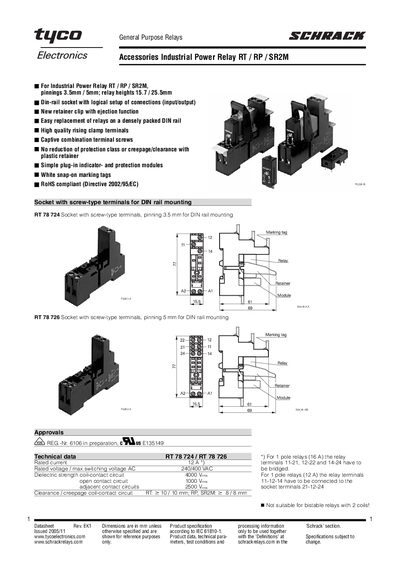

This document describes the features and characteristics of the Industrial Power Relay RT / RP / SR2M, including pinning, relay heights, DIN rail socket, retainer clip, high-quality terminals, indicator and protection modules, marking tags, etc.
The Tyco SCHRACK General Purpose Relays RT, RP and SR2M are industrial power relays designed for DIN‑rail or PCB mounting. They feature screw‑type terminals, optional retaining clips, marking tags, and LED/protection modules for easy installation and maintenance.
The datasheet provides detailed electrical ratings, mechanical dimensions, environmental limits, and accessory part numbers. All components comply with RoHS Directive 2002/95/EC and meet IEC standards for insulation and protection.
| Rated current | 12 A |
|---|---|
| Rated voltage / max. switching voltage | AC 240/400 V |
| Rated insulation voltage | 250 V |
| Degree of protection | IP20 |
| Ambient temperature range (DIN) | -20 °C … +85 °C |
| Ambient temperature range (PCB) | -40 °C … +80 °C |
| Weight (DIN version) | 36 g |
| Weight (PCB version) | 3 g |
| Maximum insertion force | 100 N |
| RoHS compliance | Yes (Directive 2002/95/EC) |
The relays are rated for a continuous current of 12 A.
They can switch AC voltages up to 240 V or 400 V.
Yes, they meet the RoHS Directive 2002/95/EC.
The relays have a protection class of IP20.
