The KKDE type of direct-acting two-way directional sliding valve is driven by an electromagnetic actuator. It has two auxiliary oil ports which can guide the flow in two directions.

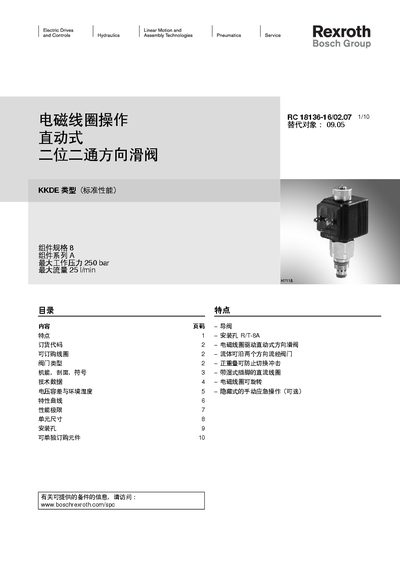

The RC 18136-16/02.07 is an electromagnetic line‑ring operating straight‑move, two‑through directional spool valve. It controls flow start, stop and direction using a pressure‑balanced, plug‑in design with a pilot valve core, reset spring and wet‑type coil inserts. Optional hidden manual emergency operation (N9) is available.
The manual provides specifications such as a maximum working pressure of 250 bar, operating temperature range –40 °C to +120 °C, supply voltages of 12 V DC or 24 V DC, power consumption of 18 W, and IP ratings up to IP69K depending on coil type. Installation dimensions, coil types (K4, K40, C4) and ordering information are also included.
| Valve weight | 0.15 kg |
|---|---|
| Coil weight | 0.20 kg |
| Installation hole | R/T-8A |
| Operating temperature range | -40 to +120 °C |
| Maximum working pressure | 250 bar |
| Maximum flow | 25 V/min |
| Supply voltage | 12 V DC / 24 V DC |
| Maximum coil temperature | 150 °C |
| Coil release time | < 50 ms |
| Maximum switching frequency | 15000 1/h |
| IP rating (K4 coil) | IP65 |
| IP rating (C4 coil) | IP66 |
| IP rating (K40 coil) | IP69K |
The valve can operate up to a maximum pressure of 250 bar.
The coil can be powered with either 12 V DC or 24 V DC.
Yes, an optional hidden manual emergency operation (designated N9) is provided.
The K4 coil type is rated IP65.
