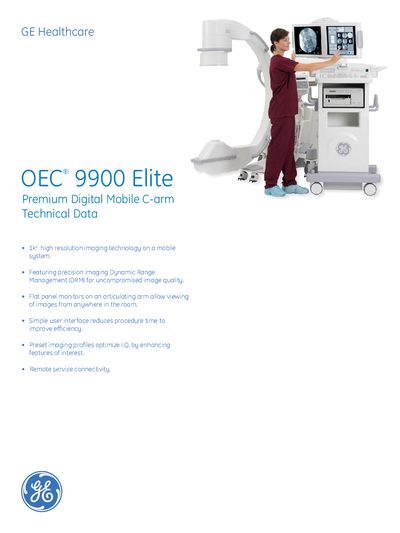

GE Healthcare 9900 Elite Premium Digital Mobile C-arm is a high-end digital mobile C-arm system. Its 1k2 high resolution imaging technology ensures uncompromised image quality. The system also features flat panel monitors that can be viewed from anywhere in the room, a simple user interface that reduces procedure time to improve efficiency, preset imaging profiles that optimize IQ by enhancing features of interest, and remote service connectivity.
The OEC 9900 Elite is a premium digital mobile C‑arm that combines high‑resolution 1k × 1k imaging, dynamic range management, and a variety of preset imaging profiles for orthopedics, spine, cardiac, and vascular procedures. It offers a flexible user interface with touchscreen control, remote service connectivity, and multiple video and DICOM capabilities.
The system is available in several configurations, including standard, Super C, and motorized C‑arm options, with 9" and 12" image intensifiers, rotating anode X‑ray tube, and optional digital dynamic disk recording up to 30 fps. Physical dimensions, electrical requirements, and optional accessories are detailed for each configuration.
| X‑ray Generator Power | 15 kW |
|---|---|
| Maximum kVp | 120 kVp |
| Maximum mA (radiographic) | 75 mA |
| Image Intensifier Sizes | 9", 12", 6", 4.5" |
| Detector Resolution | 1k × 1k pixels |
| System Weight (standard) | 610 lb (277 kg) |
| Maximum Frame Rate (Dynamic Disk) | 30 fps at 60 Hz |
The X‑ray generator provides up to 15 kW of power.
The system offers 9‑inch, 12‑inch, 6‑inch, and 4.5‑inch image intensifiers.
The digital dynamic disk can record up to 30 fps at 60 Hz.
