The ASDX series of plastic-packaged silicon pressure sensors is Honeywell's latest low-voltage, high-precision, ultra-thin, and highly reliable pressure sensors. ASDX series sensors use advanced silicon pressure sensor chips, with low operating voltage (3.3V, 5.0V), lead-free certification, low power consumption (2.5mA), high precision (±2.0%), high stability (typical drift less than 0.25%FSS/year), ultra-thin (0.67mm), and high reliability (minimum life 1 million pressure cycles). ), widely used in industrial, medical, instrumentation, automotive, aviation and other fields.
The ASDX series pressure sensors from Honeywell are integrated ASIC pressure transducers that output a 12‑bit proportional signal. They operate over a wide temperature range and support multiple pressure ranges, making them suitable for gas flow and pressure measurement applications.

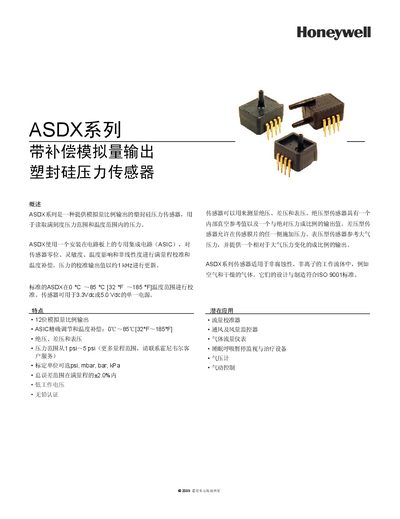

The manual covers installation, power supply requirements, pin configuration, calibration procedures, performance specifications, and safety warnings. It also includes dimensional drawings, part numbers, and contact information for technical support. This manual is written in Chinese.
| Supply voltage range | -0.3 V to 6.0 V |
|---|---|
| ESD sensitivity (human body model) | 3 kV |
| Operating temperature range | -20 °C to 105 °C |
| Pressure measurement range | 1 psi to 5 psi (additional ranges available) |
| Output resolution | 12‑bit |
| Calibration update rate | 1 kHz |
| Relative humidity range | 9 % to 95 % RH |
| Output pressure units | psi, mbar, bar, kPa |
The sensor operates from –0.3 V up to 6.0 V supply voltage.
It measures pressures from 1 psi to 5 psi, with additional ranges offered for other applications.
The sensor is rated for operation between –20 °C and 105 °C.
Calibration updates are performed at a rate of 1 kHz.
