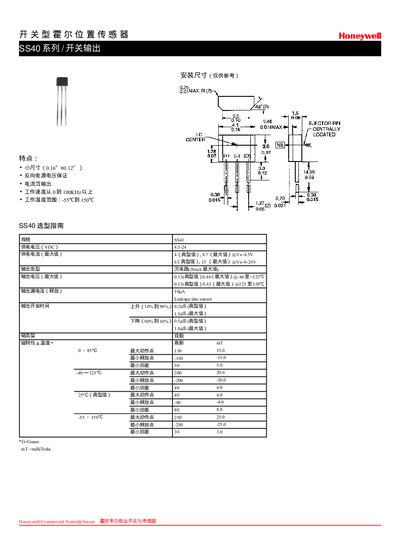

Honeywell SS40 series switch type Hall position sensor, features: small size, reverse power supply voltage guarantee, current sinking output, operating speed from 0 to 100KHz above, working temperature range: -55℃ to 150℃.
The SS40 series is a Hall‑effect switch sensor designed for precise position detection. It provides a digital output based on magnetic field changes and is suitable for a wide range of industrial applications.
Key specifications include a supply voltage of 4.5‑24 VDC, a maximum output current of 20 mA, leakage current of 10 µA, operating temperature from –35 °C to 150 °C, and switching speed up to 100 kHz. The device dimensions are compact (0.16" × 0.12"), making it easy to integrate into tight spaces. This manual is written in Chinese.
| Supply voltage (VDC) | 4.5‑24 V |
|---|---|
| Maximum output current | 20 mA |
| Leakage current | 10 µA |
| Operating temperature range | -35 °C to 150 °C |
| Switching speed | 0 to 100 kHz |
The SS40 sensor operates from 4.5 V to 24 V DC.
The sensor can source up to 20 mA of output current.
It works from –35 °C up to 150 °C.
The sensor can switch at speeds up to 100 kHz.
