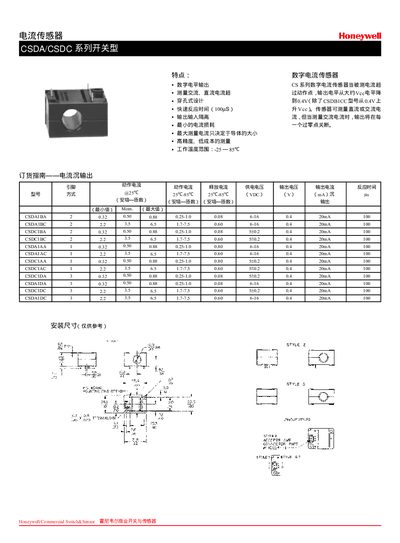

Honeywell CSDA/CSDC series digital current sensors feature digital level output, measuring AC and DC current, punched design, fast response time (100µS), isolated input and output, minimum current loss, maximum measurement current only determined by the size of the conductor, high precision and low cost measurements.
The CSDA/CSDC series are digital switch current sensors that provide a voltage output proportional to the measured current. They can measure both AC and DC currents and output a voltage ranging from 0.4 V up to the supply voltage (Vcc). The sensors feature a fast response time of 100 µs and are designed for high accuracy at low cost.
The devices operate over a temperature range of –25 °C to 85 °C and are supplied in various package styles. Installation dimensions and wiring details are provided for easy integration into control systems. The manual includes a table of electrical specifications for each model variant. This manual is written in Chinese.
| Response time | 100 µs |
|---|---|
| Output voltage range | 0.4 V to Vcc |
| Measurement type | AC and DC current |
| Operating temperature | -25 °C to 85 °C |
The sensors have a response time of 100 µs.
They operate from –25 °C up to 85 °C.
The output voltage varies from 0.4 V up to the supply voltage (Vcc).
Yes, it can measure both AC and DC currents.
