The ET series of magnetic latching toggle switches feature standard, pull-to-release and push-to-release levers, button, lead wire and screw terminals. The series' features include most products meeting MIL-S-5594 quality standards, environmental sealing, 2 and 3 position magnetic latching toggle action, temperature range of -85°F to +160°F(-65°C to+71°C).

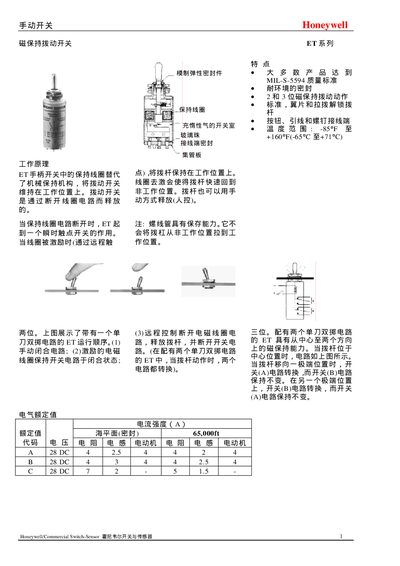

The manual explains the working principle of the ET series magnetic‑hold switch, which uses a magnetic retaining ring to keep the switch in the working position until the coil is de‑energized. It also details the switch’s features such as 2‑ and 3‑position operation, sealed construction and temperature limits.
Installation, connector wiring and circuit operation are covered with diagrams and tables, including mounting dimensions, screw‑terminal details and part numbers for various configurations. This manual is written in Chinese.
| Operating Temperature Range | -8 °C to +160 °C |
|---|
The switch is rated for temperatures from –8 °C up to +160 °C.
