TS series toggle switches, 2 poles or 3 poles, self-resetting and holding action, 1 and 2 pole circuits, rated up to 15A, lever to socket seal, soldered, screw and quick terminals, UL CSA certified

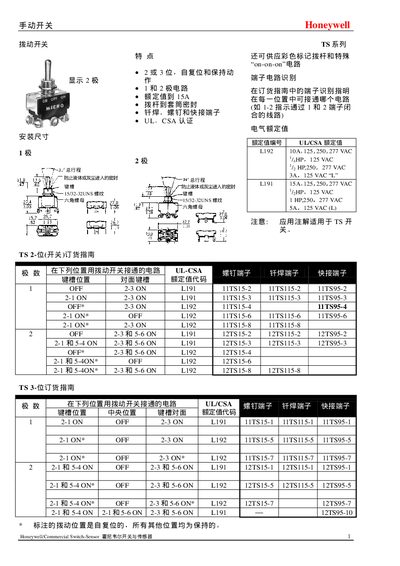

This manual describes the Honeywell TS series switch, covering its features, terminal layouts, and wiring instructions. It includes detailed tables showing how each terminal position can be configured for on‑off functions.
Technical data such as current and voltage ratings, as well as UL and CSA certifications, are listed to ensure safe and compliant installation. The document also explains the meaning of the on‑on‑on switch positions and provides reference diagrams for each configuration. This manual is written in Japanese.
| Maximum Current Rating | 15 A |
|---|---|
| Voltage Ratings | 125 VAC, 250 VAC, 277 VAC |
| Additional Voltage Rating | 125 VAC, 250 VAC, 277 VAC (15 A) |
The switch is rated for up to 15 A.
It supports 125 VAC, 250 VAC, and 277 VAC.
