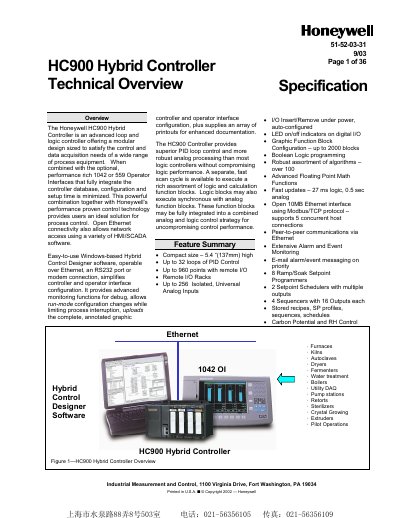

The Honeywell HC900 Hybrid Controller is an advanced loop and logic controller offering a modular design sized to satisfy the control and data acquisition needs of a wide range of process equipment.
The HC900 Hybrid Controller provides advanced PID loop control and robust analog processing in a compact, rack‑mountable design. It supports up to 32 PID loops, 960 total I/O points (including 256 isolated analog inputs) and offers flexible remote I/O racks that can be installed up to 300 m away.
Configuration is performed with the Windows‑based Hybrid Control Designer software over Ethernet, RS‑232 or modem connections. The controller includes a rich library of more than 100 function blocks, fast‑scan logic (27 ms), and open 10 MB Ethernet using Modbus/TCP, enabling integration with HMI/SCADA systems and peer‑to‑peer communication.
| PID loops | Up to 32 |
|---|---|
| Total I/O points | Up to 960 |
| Isolated analog inputs | Up to 256 |
| Fast scan update time | 27 ms logic, 0.5 s analog |
| Ethernet interface | 10 MB, Modbus/TCP, 5 concurrent hosts |
The HC900 can support up to 32 PID control loops.
The controller can address up to 960 total I/O points, including 256 analog inputs.
Yes, I/O modules can be inserted or removed under power and are auto‑configured by the controller.
It uses an open 10 MB Ethernet interface with Modbus/TCP protocol.
