Honeywell manual switches model BZ, SM, SE, V3, etc., can automatically cut off power when the inspection door or drawer door is opened, which helps to protect people and equipment.

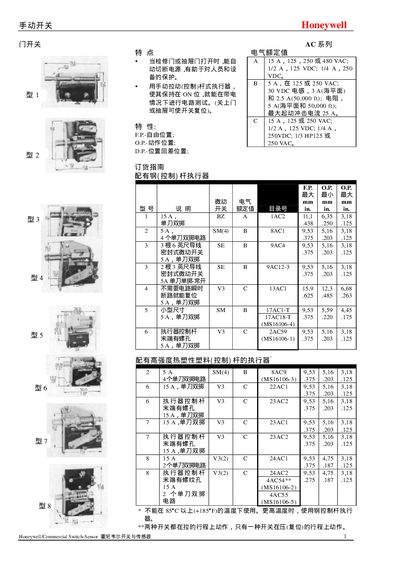

The Honeywell AC Series hand‑operated switch is designed for reliable operation with automatic cut‑off and safety features. It can be held in the ON position to allow power flow under load conditions.
The document lists the electrical ratings, including current and voltage limits, and provides tables of switch positions and wiring configurations for various applications. This manual is written in Japanese.
| Current rating (AC) | 15 A |
|---|---|
| Voltage rating (AC) | 125 VAC / 250 VAC / 480 VAC |
| Current rating (DC) | 12 A |
| Maximum surge current | 25 A |
The switch is rated for 15 A in AC applications.
It can be used at 125 VAC, 250 VAC, or 480 VAC.
The switch is rated for 12 A at DC.
The maximum surge current is 25 A.
