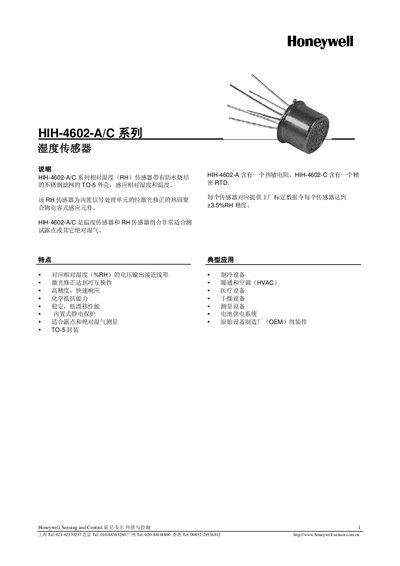

The HIH-4602-A/C series relative humidity (RH) sensors are housed in a TO-5 package with a water-proof sintered stainless steel filter mesh that senses relative humidity and temperature. The RH sensor is a laser-corrected, thermoset polymer capacitive sensing element with an embedded signal processing unit. The HIH-4602-A/C is a combination of temperature sensor and RH sensor that is ideal for measuring dew point or other absolute humidity. The HIH-4602-A contains a thermistor, and the HIH-4602-C contains a precision RTD. Factory calibration data is provided for each sensor to achieve ±3.5%RH accuracy.
The HIH-4602-A/C series is a relative humidity sensor with integrated temperature compensation, designed for HVAC and industrial applications. It offers high accuracy (±3.5 %RH), low drift, and fast response in a TO‑5 package.
The document includes performance parameters, calibration data, NTC and RTD temperature‑sensor characteristics, typical output curves, mechanical dimensions, and recommended electrical connections for both the HIH-4602‑A and HIH-4602‑C variants. This manual is written in Chinese.
| Supply Voltage | 4 – 5.8 Vdc |
|---|---|
| Supply Current | 200 – 500 µA |
| Accuracy | -3.5 to +3.5 %RH |
| Hysteresis | 3 %RH |
| Response Time | 70 ms |
| Operating Temperature | -40 to 85 °C |
| Operating Humidity | 0 to 100 %RH |
| Storage Temperature | -50 to 125 °C |
| Storage Humidity | 0 to 100 %RH |
The sensor operates from 4 V to 5.8 V DC.
The typical response time is 70 ms.
It provides an accuracy of ±3.5 %RH.
