Okozel Case Wire 600V One Copper Conductor/150℃ Rating is a product with excellent heat resistance, low surface friction, low temperature installation temperature, abrasion resistance, chemical inertness, which can be used in the wire and cable industry.

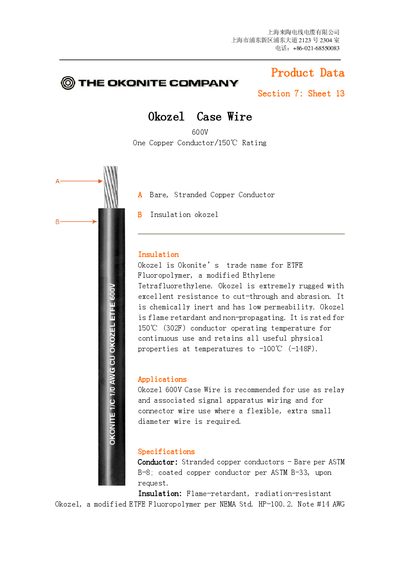

The Okozel Case Wire is a 600 V, single‑copper‑conductor wire insulated with Okozel, Okonite’s trade name for a modified ETFE fluoropolymer. The insulation offers excellent cut‑through and abrasion resistance, is chemically inert, flame‑retardant, and rated for continuous operation at 150 °C down to –100 °C.
Designed for relay and signal apparatus wiring as well as connector wire where a flexible, extra‑small diameter is needed, the product is UL listed as Type Z and meets NEMA HP‑100 standards. Standard packaging is a 1000‑spool roll with a minimum order quantity of 10,000 units.
| Conductor rating | One copper conductor, 150 °C rating |
|---|---|
| Insulation material | Okozel (ETFE fluoropolymer) |
| Continuous temperature rating | 150 °C |
| Low temperature rating | -100 °C |
| Flame retardant | Yes |
| Dielectric strength | High |
| Dielectric constant | Low |
| Abrasion resistance | Exceptional |
| Cold installation temperature | -65 °C |
| UL listing | Type Z |
| Catalog number | 5 |
| Standard package | 1000 spool |
| Minimum order quantity | 10,000 units |
Yes, it is UL listed as Type Z.
It is recommended for relay and signal apparatus wiring and for connector wire where a flexible, extra‑small diameter is required.
