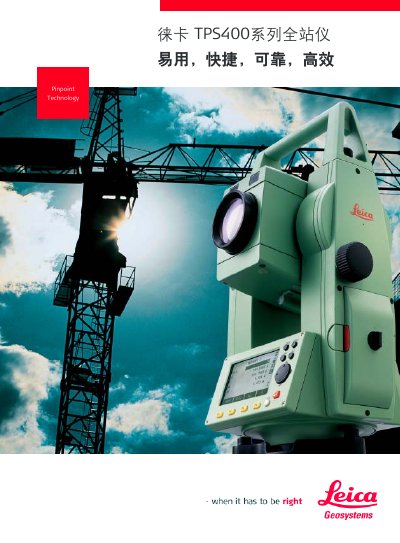

Leica TPS400 series total stations are easy to use, fast, reliable, and efficient measuring instruments. They feature Pinpoint technology, laser collimation, and electronic distance measurement, allowing for quick and accurate measurements. The total stations have a user-friendly design with a large screen and intuitive operation. They are customized solutions for various construction sites. In addition, the TPS400 series total stations offer prismless measurement and laser collimation, making them versatile for different measurement tasks.
The Leica TPS400 series total station is designed for construction sites with easy‑to‑use functions such as laser plummet, electronic bubble level, unlimited‑range fine‑thread screw, and a high‑resolution display. It supports prism and non‑prism measurements, offering rapid setup and accurate targeting.
The manual details technical parameters, data exchange options (RS‑232, USB, Bluetooth, DXF export), and built‑in applications like measuring, staking, elevation transfer, and area calculation. Environmental specifications, battery life, and IP54 protection are also covered. This manual is written in Chinese.
| Angle measurement accuracy (ISO 17123‑3) | 2″ (0.6 mgon) |
|---|---|
| Telescope magnification | 30× |
| Minimum display unit | 1″ / 0.1 mgon / 0.01 mil |
| IR distance range with prism (GPR1) | 3,500 m |
| Internal data storage capacity | 10,000 data blocks |
| Weight (including battery and tripod base) | 5.2 kg |
| Operating temperature range | -20 °C to +50 °C |
| Battery runtime | ≈ 6 hours |
The instrument can store up to 10,000 data blocks.
The total weight is 5.2 kg.
