This is a low smoke, zero halogen cable with excellent heat, moisture and chemical resistance. It is suitable for underground installations in tunnels and other places.

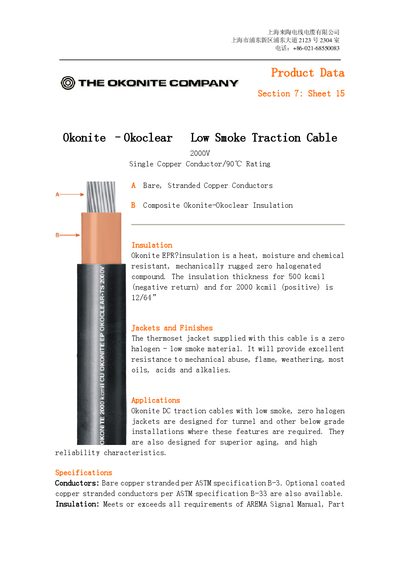

The Okonite Okoclear cable is a low‑smoke, zero‑halogen traction cable designed for tunnel and below‑grade installations. It features a single copper conductor with a 90 °C continuous rating and a thermoset jacket that resists flame, weather, oils, acids and alkalies.
The cable meets AREMA Signal Manual and ICEA standards, offering a 2000 V voltage rating, 130 °C emergency overload rating, and a 300 °C short‑circuit rating. Detailed size and weight data are provided for various kemil sizes.
| Voltage rating | 2000 V |
|---|---|
| Continuous temperature rating | 90 °C |
| Emergency overload temperature rating | 130 °C |
| Short‑circuit temperature rating | 300 °C |
| Insulation thickness | 12/64" (0.188 mm) |
| Conductor type | Bare copper stranded (ASTM B‑3) |
| Jacket material | Zero‑halogen low‑smoke |
The cable is rated for 2000 V.
It has a 90 °C continuous rating and a 130 °C emergency overload rating.
It uses Okonite proprietary EPR insulation, a zero‑halogen, low‑smoke material.
