Okonite Okosheath-CP 600V Case Wire is a high temperature, flame-resistant, wear-resistant, acid and alkali resistant cable produced by Shanghai Laitou Electric Wire and Cable Co., Ltd. It is suitable for wiring and distribution.

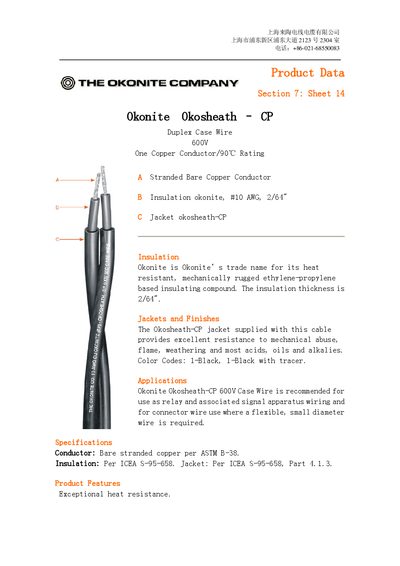

The Okonite Okosheath-CP duplex case wire is a 600 V, 1‑copper‑conductor cable with a 90 °C continuous temperature rating. It features a stranded bare copper conductor insulated with Okonite’s ethylene‑propylene compound (2/64" thickness) and a durable Okosheath‑CP jacket that resists flame, weathering, acids, oils and alkalies.
The cable is supplied in standard 500‑spool packages, with color‑code options (black or black with tracer). It meets ICEA S‑95‑658 specifications for insulation and jacket, and is suitable for relay and signal apparatus wiring, as well as flexible connector applications.
| Voltage rating | 600 V |
|---|---|
| Conductor | Bare stranded copper per ASTM B‑38 |
| Insulation thickness | 2/64 in |
| Continuous temperature rating | 90 °C |
| Emergency overload rating | 130 °C |
| Short‑circuit rating | 250 °C |
| Jacket material | Okosheath‑CP (ethylene‑propylene based) |
It is rated for 600 V.
The cable has a 90 °C continuous rating, a 130 °C emergency overload rating, and a 250 °C short‑circuit rating.
It uses a bare stranded copper conductor per ASTM B‑38.
The insulation thickness is 2/64 in.
