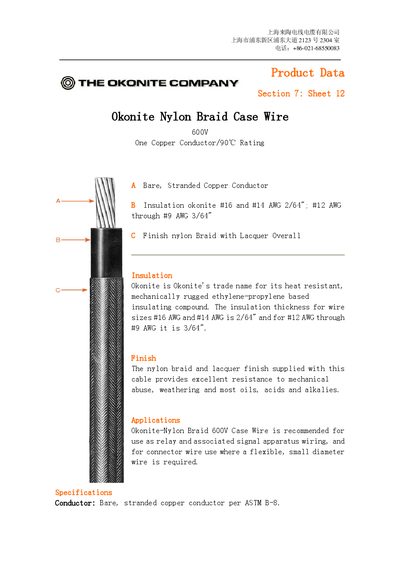

This document introduces the features and characteristics of Okonite Nylon Braid Case Wire 600V produced by Shanghai Laitao Electric Wire and Cable Co., Ltd. The product uses bare, stranded copper conductor with excellent mechanical strength and heat resistance. The insulation material is Okonite's proprietary compound, which has stable electrical and physical properties. The outer layer is covered with nylon braid and lacquer finish, providing good resistance to mechanical abuse, weathering, and most oils, acids, and alkalies. It is recommended for wiring relay and associated signal apparatus, as well as connector wire where a flexible, small diameter wire is required.
Okonite's Nylon Braid Case Wire provides a heat‑resistant, mechanically rugged insulated cable. The wire features a bare stranded copper conductor, an ethylene‑propylene based insulation, and a black nylon braid with a lacquer finish that resists oils, acids, alkalies, and weathering.
The cable is recommended for relay and signal apparatus wiring, as well as connector wire where a flexible, small‑diameter conductor is required. It meets ASTM B‑8 for the conductor and ICEA S‑95‑658 for the insulation, offering reliable performance in demanding environments.
| Continuous temperature rating | 90 °C |
|---|---|
| Emergency overload temperature rating | 130 °C |
| Short‑circuit temperature rating | 250 °C |
| Insulation standard | ICEA S‑95‑658 |
| Finish | Black nylon braid with lacquer |
| Conductor type | Bare stranded copper per ASTM B‑8 |
| Insulation thickness (#16 & #14 AWG) | 2/64 in |
| Insulation thickness (#12‑#9 AWG) | 3/64 in |
| Nominal finish thickness | 5 mils |
It has a 90 °C continuous rating, a 130 °C emergency overload rating, and a 250 °C short‑circuit rating.
It is recommended for relay and associated signal apparatus wiring and for connector wire where a flexible, small‑diameter wire is required.
The insulation complies with ICEA S‑95‑658.
