The DVPAETB-ID32A/OR16A extension drive board is designed for connecting to DVP32SM11N and DVP32SN11TN, the I/O module with multiple points.
The DVPAETB series are open‑type extension drive boards designed to be installed in enclosures that protect against dust, humidity, electric shock, and vibration. The manual explains the required safety measures, such as using a lockable enclosure and avoiding AC power on I/O terminals.

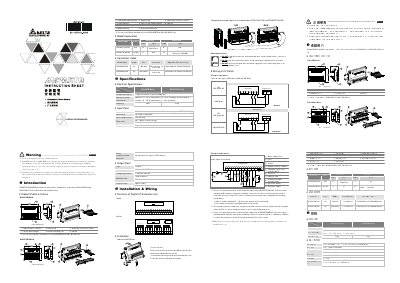

Detailed wiring diagrams, connection cable options, and electrical specifications are provided for the DVPAETB‑ID32A and DVPAETB‑OR16A models. The guide includes installation steps for DIN‑rail mounting, input and output point wiring, and recommended protection components for inductive loads.
| Insulation resistance | >5 MΩ (all I/O point‑to‑ground: 500 V DC) |
|---|---|
| Operating temperature | 0 ~ 55 °C |
| Storage temperature | -25 ~ 70 °C |
| Weight (ID32A) | 166 g |
| Output relay current | 2 A/1 point (5 A/COM) |
| Output voltage rating | <250 V AC, 30 V DC |
| Maximum load | 90 W (resistive) |
| Response time (both input and output) | Approx. 10 ms |
They must be installed in an enclosure that is free of dust, humidity, electric shock, and vibration, and that can be locked with a special tool or key.
No. Connecting an AC power supply to any I/O terminal can cause serious damage.
The input points accept DC signals in two modes: SINK and SOURCE.
