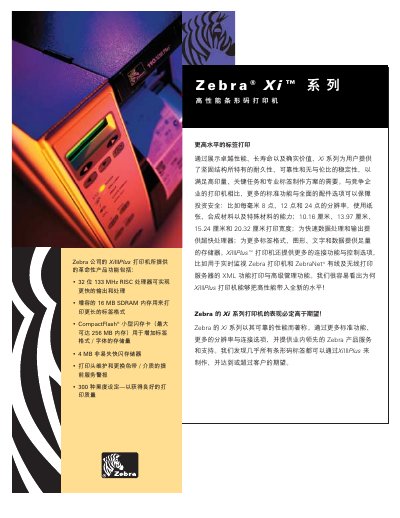

This document introduces the features and characteristics of Zebra's Xi series high-performance barcode printers, including excellent performance, long lifespan, true value, durability, reliability, stability, meeting the needs of high print volume, critical tasks, and professional label production solutions, standard features and accessory options, resolution, print width, memory, connectivity options, and control options.
The XiIIIPlus series offers high‑performance barcode printing with durable steel construction, multiple resolution options (8, 12, 24 dots/mm), and fast processing via a 133 MHz RISC processor and up to 16 MB SDRAM. It supports a wide range of media types, including continuous paper, die‑cut paper, and black‑mark paper, and provides extensive connectivity such as USB 2.0, RS‑232C/422/485, IEEE 1284 parallel, Ethernet, and wireless options.
The leaflet lists detailed specifications for each model variant (110XiIIIPlus, 170XiIIIPlus, 140XiIIIPlus, 220XiIIIPlus), covering dimensions, weight, maximum print width, print speed, power requirements, and environmental operating ranges. It also references Zebra software tools (ZebraDesigner, ZebraNet) and optional accessories like RFID upgrades and media handling components. This manual is written in Chinese.
| Processor | 133 MHz RISC |
|---|---|
| Memory (SDRAM) | 16 MB |
| Flash Memory | 4 MB non‑volatile |
| Maximum Print Width (110XiIIIPlus 24‑dot) | 81 mm |
| Maximum Print Width (110XiIIIPlus 8/12‑dot) | 120 mm (12 cm) |
| Print Speed (8‑dot) | 254 mm/s |
| Print Speed (12‑dot) | 203 mm/s |
| Dimensions (W × H × D) | 263.5 mm × 495.3 mm × 393.7 mm |
| Weight | 22.7 kg |
| Power Input | 90–264 VAC, 48–62 Hz |
| Operating Temperature (thermal transfer) | 5 °C – 40 °C |
| Connectivity Interfaces | USB 2.0, RS‑232C/422/485, IEEE 1284 parallel, Ethernet, wireless |
| Supported Media Types | Continuous paper, die‑cut paper, black‑mark paper, ribbons |
The XiIIIPlus printer is available with 8, 12, and 24 dots per millimeter resolution options.
The 110XiIIIPlus with a 24‑dot print head can print up to 81 mm wide labels.
The series supports USB 2.0, RS‑232C/422/485, IEEE 1284 parallel, Ethernet, and wireless networking.
It can print on continuous paper, die‑cut paper, black‑mark paper, and uses compatible ribbons.
