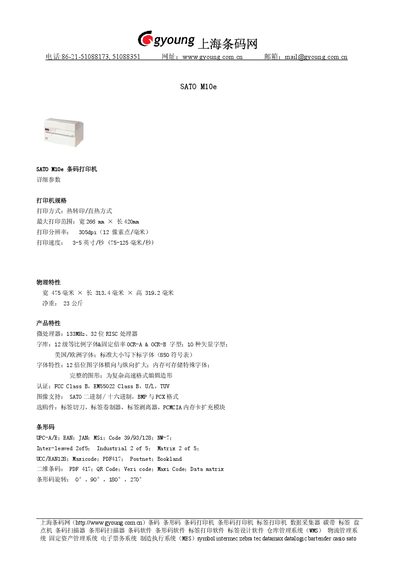

SATO M10e Barcode Printer Manual
The SATO M10e is a compact barcode printer that supports both thermal‑transfer and direct‑thermal printing. It offers a range of fonts, image formats, and optional accessories such as label cutters and PCMCIA memory cards.
The manual lists detailed technical data, including print resolution, speed, physical dimensions, communication ports, power requirements, and recommended label and ribbon sizes, as well as the environmental conditions for operation and storage. This manual is written in Chinese.
SATO M10e specifications
| Printing method | Thermal transfer / Direct thermal |
|---|---|
| Maximum print area | 266 mm × 420 mm |
| Print resolution | 305 dpi (12 pixels/mm) |
| Print speed | 3‑5 in/s (75‑125 mm/s) |
| Physical dimensions | 475 mm × 313.4 mm × 319.2 mm |
| Net weight | 23 kg |
| Microprocessor | 133 MHz, 32‑bit RISC |
| Communication interfaces | Parallel (IEEE1284), RS‑232C, RS‑422/485, 10/100 Mbps Ethernet, USB 1.1 |
Source: SATO M10e Barcode Printer Manual
All SATO M10e documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What printing methods does the SATO M10e support?
It supports both thermal‑transfer and direct‑thermal printing.
Which communication ports are available on the printer?
The printer provides a parallel IEEE1284 port, RS‑232C and RS‑422/485 serial ports, a 10/100 Mbps Ethernet port, and a USB 1.1 port.
What printing methods does the SATO M10e support?
It supports both thermal transfer and direct‑thermal printing.
What is the maximum printable area of the SATO M10e?
The maximum printable area is 266 mm wide by 420 mm long.
