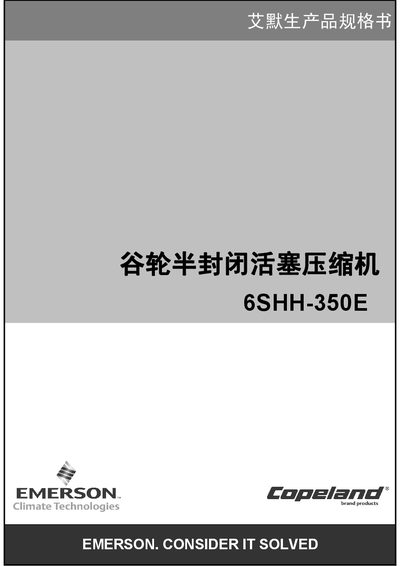

This PDF document is a product specification sheet of EMERSON. It provides technical data and performance characteristics of the 6SHH-350E semi-hermetic piston compressor.
This guide provides the technical specifications and performance data for the Emerson 6SHH-350E semi‑hermetic reciprocating compressor. Key parameters such as nominal power, displacement, voltage options and dimensions are listed, along with a performance sheet covering evaporating and condensing temperatures.
The document also includes wiring diagrams for direct and split‑start motor connections, a list of standard and optional accessories, and detailed dimension drawings. Contact information for Emerson regional offices in Shanghai, Guangzhou and Beijing is provided at the end of the guide. This manual is written in Chinese.
| Model | 6SHH-350E |
|---|---|
| Nominal Power (HP) | 35 |
| Bore x Stroke (mm) | 68.3 / 55.6 |
| Displacement (mL) | 1060 |
| Voltage Options | 380‑420V/220‑240V 3PH 60Hz |
| Net Weight (kg) | 224 |
| Gross Weight (kg) | 251 |
The nominal power is 35 HP.
The compressor can be powered from 380‑420 V or 220‑240 V three‑phase at 60 Hz.
