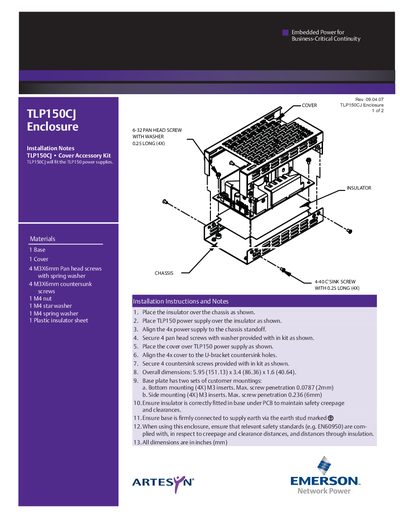

This document introduces the installation method of the TLP150CJ enclosure, including the materials and tools required for installation, installation steps and precautions.
This guide provides the installation instructions for the Emerson TLP150CJ enclosure, including the parts supplied, required hardware, and step‑by‑step mounting procedures. It also lists the overall dimensions and mounting options for the base plate.
Safety notes remind users to follow relevant standards such as EN60950 and to ensure proper creepage and clearance distances. Contact information for technical support is provided at the end of the document.
| Overall dimensions (inches) | 5.95 x 3.4 x 1.6 |
|---|---|
| Overall dimensions (mm) | 151.13 x 86.36 x 40.64 |
| Bottom mounting inserts | 4 × M3 inserts, max penetration 0.0787 in (2 mm) |
| Side mounting inserts | 4 × M3 inserts, max penetration 0.236 in (6 mm) |
| Cover securing hardware | 4 pan head screws with washers |
The enclosure measures 5.95 × 3.4 × 1.6 inches (151.13 × 86.36 × 40.64 mm).
Four pan head screws with washers are used to secure the cover.
The installation should comply with safety standard EN60950.
Technical support is available via email at [email protected].
