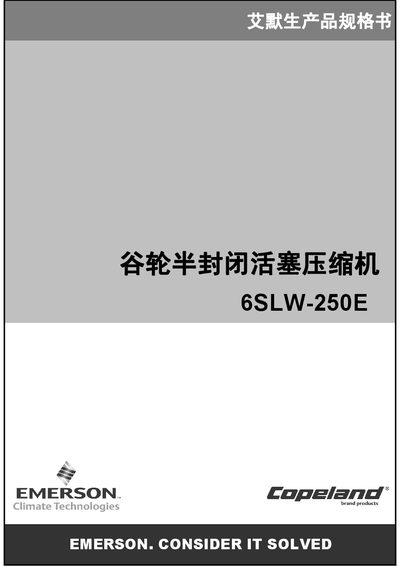

6SLW-250E Emerson semi-hermetic piston compressor product specification, mainly includes product technical parameters, performance parameters, nomenclature, compressor configuration, compressor nameplate example, compressor wiring diagram and other information.
This guide provides the technical specifications, performance data, and installation details for the Emerson 6SLW-250E semi‑hermetic reciprocating compressor. It includes nominal power, cylinder count, bore‑stroke dimensions, displacement, and weight information.
The document also contains wiring diagrams, envelope limits, standard and optional configurations, and dimension drawings, along with contact information for Emerson regional offices. This manual is written in Chinese.
| Nominal Power (HP) | 25 |
|---|---|
| Bore x Stroke (mm) | 68.3/55.6 |
| Displacement | 106/127.2 |
| Oil Charging Capacity (L) | 3.4 |
| Net Weight (kg) | 210 |
| Gross Weight (kg) | 237 |
The nominal power is 25 HP.
The compressor measures 540 mm wide, 490 mm high, and 740 mm long.
