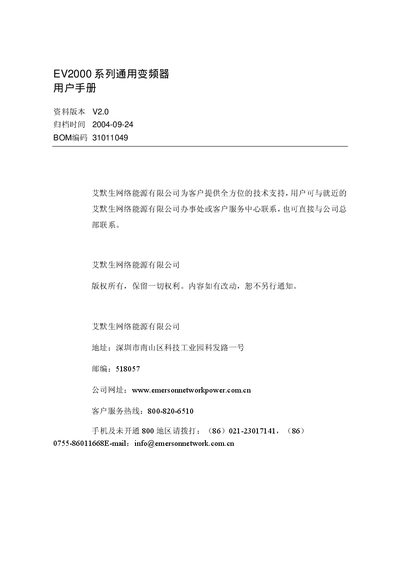

EV2000 series general inverter user manual, mainly introduces the safety information, product introduction, installation and wiring, inverter operation and operation instructions, detailed function introduction and other contents
This manual covers safety information, product specifications, installation and wiring procedures, and detailed operation instructions for the EV2000 series general‑purpose inverter. It also includes sections on fault diagnosis, regular maintenance, and warranty information.
The document provides technical data such as rated voltage, input range, frequency range, modulation method, cooling type, and protection class, as well as practical guidance on motor insulation checks, grounding, and safe handling during installation and service. This manual is written in Chinese.
| Rated voltage | 380‑440 V |
|---|---|
| Input voltage range | 320‑460 V |
| Frequency range | 0‑650 Hz |
| Modulation method | Flux vector PWM |
| Protection class | IP20 |
The warranty period is eighteen months from the manufacturing date.
Use a 500 V megohmmeter and ensure the insulation resistance is at least 5 MΩ.
Install on non‑combustible metal, ensure proper grounding, and perform wiring only with power fully disconnected.
