Specifications for Emerson 6SKH-5000 scroll compressor, including technical parameters, performance parameters, nomenclature, compressor nameplate, etc.

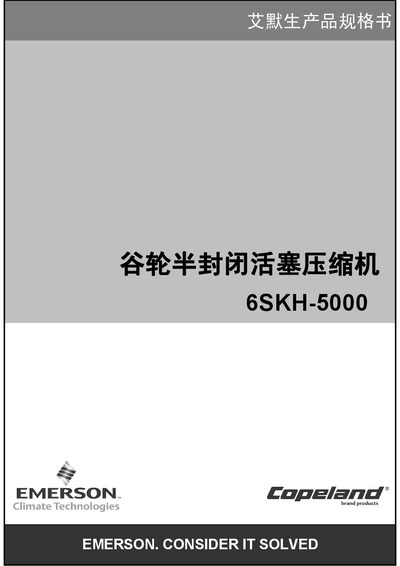

This guide presents the technical specifications and performance data for the Emerson 6SKH-5000 semi‑hermetic reciprocating compressor. It includes rated power, cylinder count, bore‑stroke dimensions, displacement, electrical ratings, and physical dimensions.
The document also contains wiring diagrams, connector specifications, and recommended compressor configurations, along with contact information for Emerson regional offices. This manual is written in Japanese.
| Model | 6SKH-5000 |
|---|---|
| Horsepower (HP) | 50 |
| Bore x Stroke (mm) | 80 x 657 |
| Crankcase Heater (W) | 200 |
| Discharge Port (in) | 158 |
| Suction Port (in) | 2.508 |
| Width (mm) | 570 |
| Height (mm) | 540 |
| Mounting Size (mm) | 457 x 305 |
| Oil Charging Capacity (L) | 6.8 |
| Net Weight (kg) | 298 |
| Gross Weight (kg) | 295 |
The 6SKH-5000 compressor is rated at 50 HP.
It can be supplied with 380‑420 V or 220‑240 V three‑phase at 60 Hz, and also 380‑420 V 50 Hz/440‑480 V 60 Hz options.
The oil charging capacity is 6.8 L.
