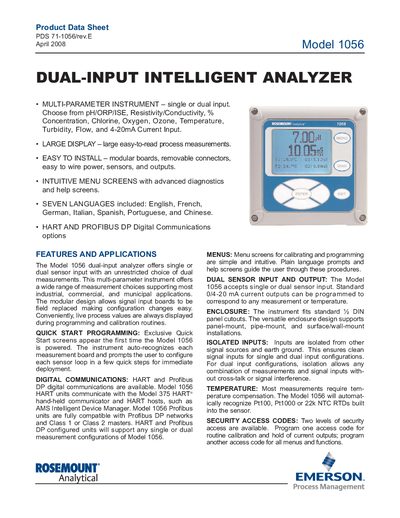

Model 1056 is a multi-parameter instrument that can be single or dual input. You can choose from pH/ORP/ISE, Resistivity/Conductivity, % Concentration, Chlorine, Oxygen, Ozone, Temperature, Turbidity, Flow, and 4-20mA Current Input.
The Rosemount 1056 is a dual‑input multi‑parameter analyzer that can measure pH, ORP, ISE, conductivity, resistivity, % concentration, chlorine, oxygen, ozone, temperature, turbidity, flow and 4‑20 mA current inputs. It features a large back‑lit LCD, modular boards for easy sensor replacement, and seven language menus.
The manual covers quick‑start programming, HART and Profibus DP digital communications, security access codes, diagnostic alerts, power‑supply options, and detailed specifications for each measurement module. Installation guidance includes panel‑mount, pipe‑mount, and surface‑mount enclosure options.
| Enclosure material | Polycarbonate, NEMA 4X/CSA 4 (IP65) |
|---|---|
| Dimensions (W×H×D) | 155 mm × 155 mm × 131 mm |
| Display | Monochromatic graphic LCD, 128 × 96 pixels, back‑lit |
The Model 1056 supports HART and Profibus DP digital communications.
Seven languages are included: English, French, German, Italian, Spanish, Portuguese, and Chinese.
