The specification sheet of Emerson 6SHH-3500 semi-hermetic piston compressor introduces the technical parameters, performance parameters, nomenclature, compressor nameplate example, compressor wiring diagram and other information of the product.

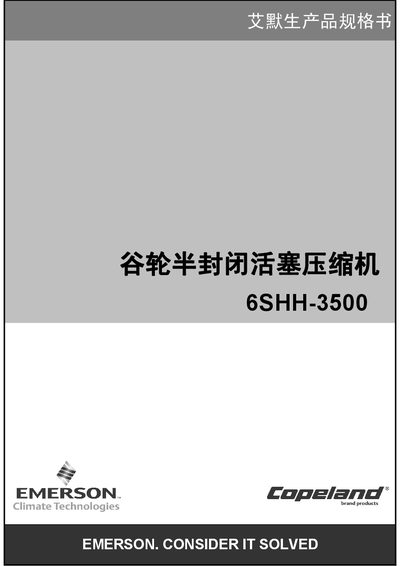

The Emerson 6SHH-3500 selection guide presents key technical data and performance information for the semi‑hermetic reciprocating compressor, helping engineers choose the right unit for their application.
It includes specifications such as power rating, bore‑stroke, dimensions, wiring diagram, and recommended configuration options, along with contact details for Emerson regional offices. This manual is written in Japanese.
| Model | 6SHH-3500 |
|---|---|
| Nominal Input Power | 5 HP |
| Bore x Stroke | 68.3 mm x 55.6 mm |
| Displacement | 106 L |
| Input Voltage | 380‑420 V / 220‑240 V, 3‑phase, 60 Hz |
| Crankcase Heater Power | 100 W |
| Discharge Port Size | 138 |
| Suction Port Size | 108 |
| Length | 740 mm |
| Net Weight | 224 kg |
The nominal input power is 5 HP.
The bore is 68.3 mm and the stroke is 55.6 mm.
The discharge port size is 138 (as listed in the document).
The net weight of the compressor is 224 kg.
