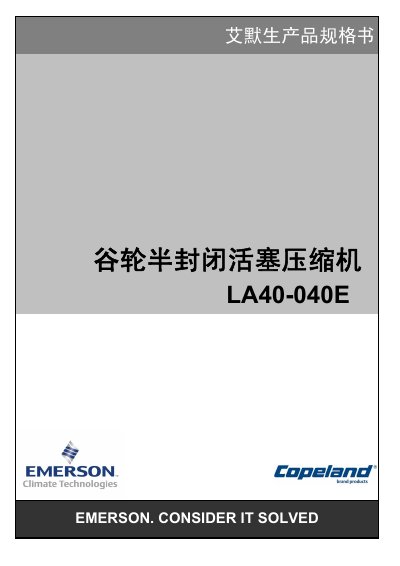

Emerson LA40-040E Semi-Hermetic Reciprocating Compressor Specification Sheet

This document describes the technical parameters and performance characteristics of the EMERSON LA40-040E semi-hermetic piston compressor.

Brand: Emerson
Category: Industrial Supply
Document type: Datasheet
Language: Chinese
Pages: 7
File format: PDF
File size: 275 KB
Published: 06 January, 2012
Updated: 29 September, 2023
MD5 checksum: 6C7A0DCA199C4D186F8D86B3909EE6B1
PDF: Emerson LA40-040E Semi-Hermetic Reciprocating Compressor Specification Sheet PDF

About this manual

This specification sheet presents the technical parameters of the Emerson LA40-040E semi‑hermetic reciprocating compressor, including electrical ratings, dimensions, weight, and oil capacity. It also lists performance data such as displacement and nominal input power.

Additional sections cover the permissible operating envelope, a wiring diagram, detailed dimension drawings, and application guidelines for proper installation and use in refrigeration systems. This manual is written in Chinese.

What's inside

Technical Data
Performance Parameters
Operating Envelope
Wiring Diagram
Dimensions
Application Guidelines

Specifications

Length	460 mm
Width	330 mm
Height (without fan)	385 mm
Height (with fan)	555 mm
Net Weight	80 kg
Gross Weight	88 kg

Frequently asked questions

How much does the LA40-040E compressor weigh?

The net weight is 80 kg and the gross weight is 88 kg.

Where can I find the wiring diagram for the LA40-040E?

The wiring diagram is provided on page 5 of the specification sheet under the heading "压缩机接线示意图 Wiring Diagram".
