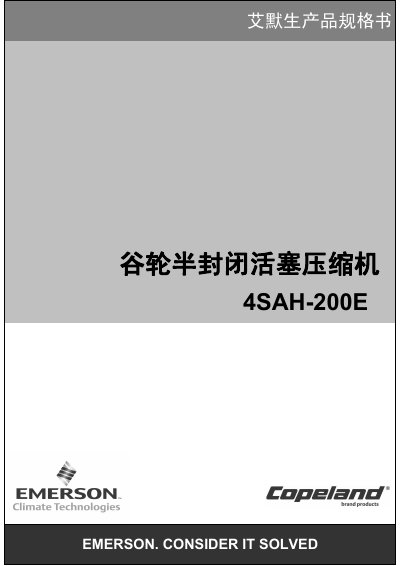

This document is the product specification sheet of Emerson's semi-hermetic piston compressor 4SAH-200E, which mainly includes product technical parameters, product performance parameters, nomenclature, compressor nameplate example, compressor wiring diagram and other information.
The 4SAH-200E is a semi‑hermetic reciprocating compressor from Emerson’s Copeland line, designed for refrigeration and industrial cooling applications. The document presents the compressor’s technical parameters, performance curves, and recommended installation practices.
Key information includes the compressor’s physical dimensions, weight, connection sizes, oil charging capacity, and a detailed wiring diagram for motor and auxiliary components. Configuration options such as inlet/outlet port sizes and optional accessories are also listed. This manual is written in Chinese.
| Length | 650 mm |
|---|---|
| Width | 485 mm |
| Height (without fan) | 495 mm |
| Net Weight | 183 kg |
| Gross Weight | 210 kg |
The compressor measures 650 mm in length, 485 mm in width, and 495 mm in height without the fan.
The net weight is 183 kg.
The suction port uses a 1 5/8" connection and the discharge port uses a 1 1/8" connection.
Yes, it provides a wiring diagram showing motor connections, contactors, fan switch, and other control components.
