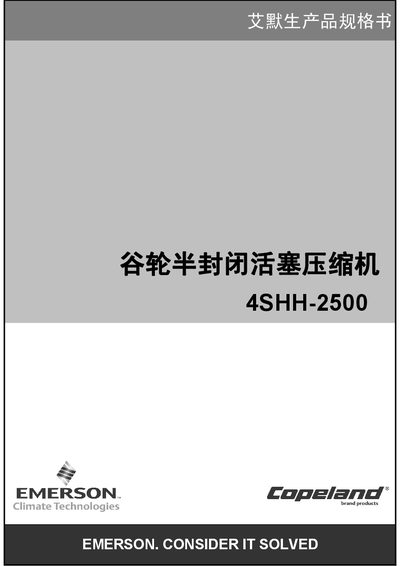

This document is the Emerson product specification sheet for the GOURLON semi-hermetic piston compressor EMERSON. CONSIDER IT SOLVED 4SHH-2500, which mainly introduces the product's technical parameters, performance parameters, nomenclature, compressor nameplate example, compressor wiring box internal motor wiring and other information
This document presents the Emerson 4SHH-2500 semi‑hermetic reciprocating compressor selection information. It includes technical specifications, performance tables, wiring diagrams, and configuration details to help engineers choose the appropriate unit.
Key sections cover technical data, performance sheets, envelope diagrams, wiring diagrams, compressor configuration, and application guidelines, along with contact information for Emerson regional offices.
| Model | 4SHH-2500 |
|---|---|
| Power (HP) | 25 |
| Number of Cylinders | 4 |
| Bore x Stroke (mm) | 68.3 x 55.6 |
| Input Voltage | 380‑420V/220‑240V 3PH 60Hz |
| Suction Port Size | 2 × 108 mm |
| Length (mm) | 670 |
| Width (mm) | 490 |
| Height (mm) | 495 |
| Mounting Size (mm) | 381 × 305 |
| Oil Charging Capacity (L) | 3.8 |
| Net Weight (kg) | 194 |
| Gross Weight (kg) | 221 |
The compressor model is 4SHH-2500.
It is rated at 25 horsepower.
The oil charging capacity is 3.8 L.
