Technical parameters, performance parameters, naming rules, compressor nameplate example, compressor permissible operating range, compressor wiring diagram, compressor configuration, compressor size diagram, compressor application guide and other information of L40-030E scroll compressor.

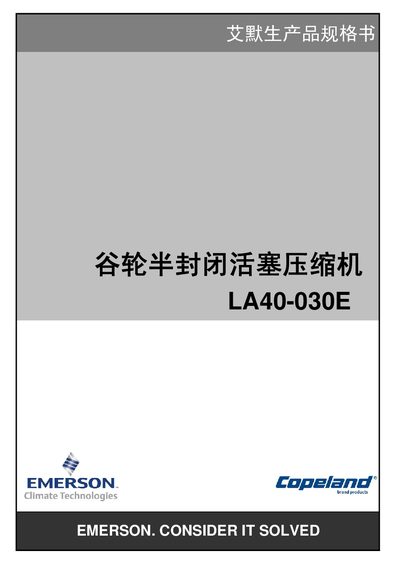

This selection guide presents the technical specifications, performance data and installation information for the Emerson LA40-030E semi‑hermetic reciprocating compressor. It is intended for engineers and specifiers who need detailed product parameters and wiring details.
Key sections include technical data tables, performance sheets, a wiring diagram, dimension drawings, and application guidelines. The document also references the related L‑series compressor user manual for further operational instructions. This manual is written in Chinese.
| Length | 460 mm |
|---|---|
| Width | 330 mm |
| Height (without fan) | 385 mm |
| Height (with fan) | 555 mm |
| Net weight | 78 kg |
| Gross weight | 86 kg |
The compressor measures 460 mm in length, 330 mm in width, 385 mm in height without the fan, and 555 mm with the fan.
The wiring diagram is shown on page 5 of the document under the heading “压缩机接线示意图 Wiring Diagram”.
The net weight is listed as 78 kg.
