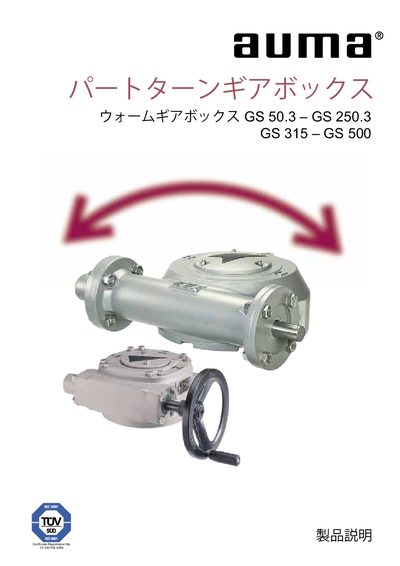

This document introduces the GS series gear boxes of AuMA. The series gear boxes are mainly used for 90° rotation operation, including water treatment, refrigeration, shipbuilding, chemical industry and other industries.
AUMA is a global manufacturer of electric actuators, actuator control devices, and valve gearboxes. This document presents the technical details of the GS series part‑turn gearboxes, covering models from GS 50.3 up to GS 500.
The catalog includes torque and service‑life data, operation modes (manual and electric), design principles, end‑stop safety features, swing‑angle adjustment, housing material, coupling options, and various environmental protection ratings such as IP 68‑3, IP 68‑6 and IP 68‑9. This manual is written in Japanese.
| Maximum Output Torque | 63,000 Nm – 360,000 Nm |
|---|---|
| Housing Material | Spheroidal cast iron |
The maximum output torque ranges from 63,000 Nm to 360,000 Nm.
The housing is made of spheroidal cast iron.
