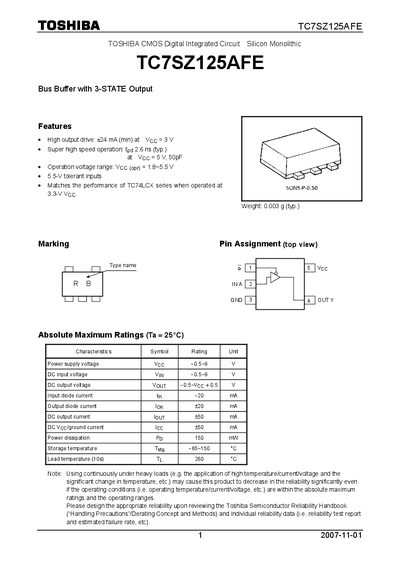

The document describes the features and characteristics of the TOSHIBA CMOS Digital Integrated Circuit TC7SZ125AFE Bus Buffer, released in November 2007. It features high output drive, super high-speed operation, a wide range of operating voltages, and 5.5V tolerant inputs.
The TC7SZ125AFE is a Toshiba CMOS bus buffer with 3‑state output, offering high output drive and fast propagation. It operates from 1.8 V to 5.5 V and tolerates 5.5 V inputs.
The datasheet lists pin assignments, absolute maximum ratings, electrical and AC characteristics, package dimensions, and usage restrictions for reliable design.
| High output drive | +24 mA (min) at Voc = 3 V |
|---|---|
| Propagation delay (tpd) | 2.6 ns (typ.) |
| Operating voltage range (Vcc) | 1.8 V ~ 5.5 V |
| Input voltage range | 0 V ~ 5.5 V |
| Power dissipation | 150 mW |
| Storage temperature | -65 °C ~ 150 °C |
| Weight | 0.003 g (typ.) |
| Package type | SONS-P-0.50 |
+24 mA (min) at Voc = 3 V.
2.6 ns (typ.).
It operates from 1.8 V to 5.5 V supply voltage.
