MT6L68FS is a NPN RF switch from Toshiba, which features high frequency performance, low insertion loss, and can be widely used in RF signal switching, amplification, oscillation and other occasions.

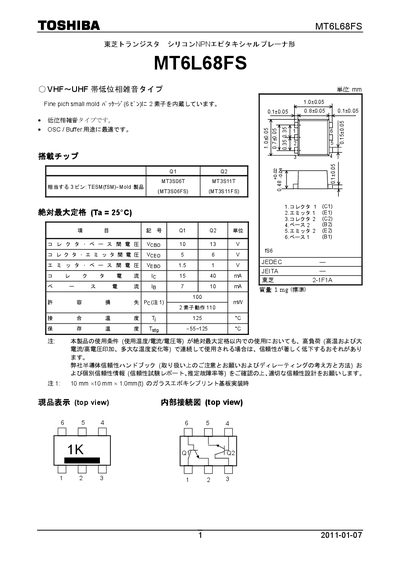

The MT6L68FS is a silicon NPN epitaxial planar transistor designed for low‑phase‑noise VHF/UHF applications. The datasheet provides absolute maximum ratings, electrical parameters, and recommended handling procedures.
Key sections include electrical characteristics tables, absolute maximum ratings, package outline, and detailed handling precautions to ensure reliability in high‑frequency circuits. This manual is written in Japanese.
| Collector‑Base voltage (Vcbo) | 10‑13 V |
|---|---|
| Collector‑Emitter voltage (Vceo) | 5‑6 V |
| Noise Figure (NF) | 2.4‑3.2 dB |
| Maximum junction temperature (Tj) | 125 °C |
The maximum collector‑emitter voltage is specified as 5 V to 6 V.
Because the device is sensitive to static electricity, appropriate ESD protection must be used when handling it.
