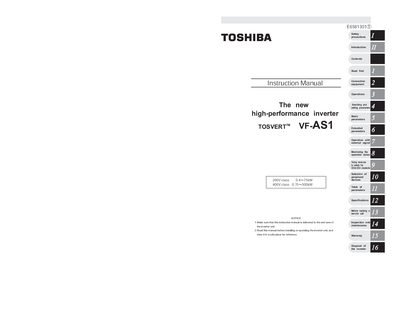

This manual introduces the features and operating methods of the TOSVERT VF-AS1 200V/400V series inverters.
This manual covers the essential safety precautions for handling the VF‑AS1 inverter, including warnings about electric shock, fire hazards, and the need for qualified personnel during installation and maintenance. It also details the required steps before wiring, such as turning off input power, waiting for the charge lamp to extinguish, and using appropriate testing equipment.
The document includes sections on connection equipment, parameter setting, operation with external signals, monitoring, peripheral device selection, specifications, service calls, routine inspection, warranty information, and proper disposal of the inverter. Transport and installation guidance emphasizes the use of cranes, balanced sling ropes, and protective covers to prevent injury and equipment damage.
| Power rating (200 V class) | 0.4~75 kW |
|---|---|
| Power rating (400 V class) | 0.75~500 kW |
Never disassemble, modify or repair the unit, keep the front cover attached when power is on, and avoid touching terminals while the inverter is energized.
Large capacity models should be lifted with a crane, using balanced sling ropes, and the unit must be placed on a non‑flammable base that can support its weight.
Turn off all input power, wait at least 15 minutes until the charge lamp is off, and verify the DC voltage with a tester capable of measuring 800 VDC or more.
