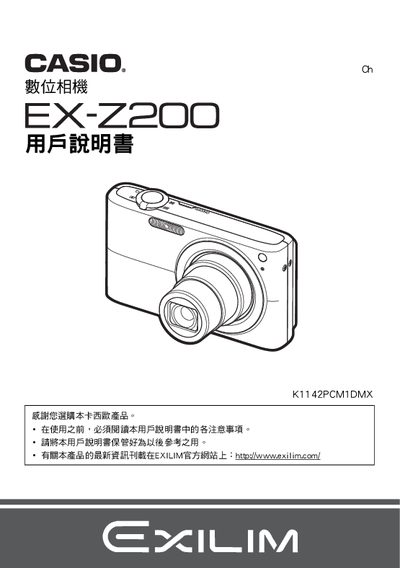

This manual is the user manual for CASIO exilim 1142PCM1DMX digital camera, which introduces the basic functions and usage methods of the camera.
This manual explains how to unpack, install the NP‑40 rechargeable battery and BC‑31L charger, and perform the initial setup of the EX‑Z200 camera. It covers basic operation, automatic focus, scene modes, and advanced features such as Best Shot, face detection, and white‑balance adjustments.
Additional sections describe video playback, PictBridge printing, USB connectivity, and international usage guidelines. The final part lists technical specifications for the battery, charger, dimensions, weight, and operating temperature ranges. This manual is written in Japanese.
| Battery type | NP‑40 lithium‑ion rechargeable battery |
|---|---|
| Battery capacity | 1300 mAh |
| Battery voltage | 3.7 V |
| Battery charging time | ≈150 minutes |
| Charger model | BC‑31L |
| Charger input voltage | 100‑240 V AC, 50/60 Hz |
| Charger output voltage | 4.2 V DC, 600 mA |
| Operating temperature (camera) | 0 °C to 40 °C |
| Operating temperature (charger) | 5 °C to 35 °C |
| Camera dimensions (W×H×D) | 38.5 mm × 38.0 mm × 9.3 mm |
| Camera weight | ≈34 g |
| Charger dimensions (W×H×D) | 55 mm × 20 mm × 86 mm |
| Charger weight | ≈58 g |
The camera uses an NP‑40 lithium‑ion rechargeable battery.
Charging the battery with the supplied BC‑31L charger takes about 150 minutes.
