VS0801 is a 8-port video switch with 8 sets of VGA image/audio input ports, which can easily display 8 sets of signals from different computer systems on a single screen or multimedia projector. This product also supports audio functions and is suitable for machine room applications requiring high-resolution image monitoring and audio output.
The VS0801 8‑port video switcher provides eight VGA video/audio input ports, allowing users to switch signals from multiple computers to one display or projector. It can be rack‑mounted in a 1U space and supports high‑resolution video and stereo audio, making it suitable for data‑center, industrial and commercial environments.

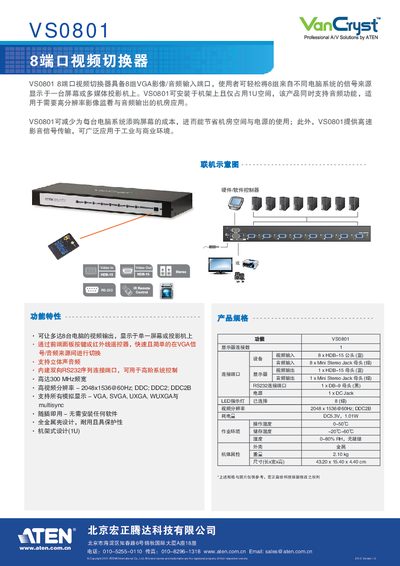

Key hardware features include a front‑panel and infrared remote for source selection, a bidirectional RS‑232 port for system control, DC 5.3 V power consumption (1.01 W), and a metal enclosure. The device operates from 0‑50 °C, stores at –20‑60 °C, and tolerates up to 80 % RH. This manual is written in Chinese.
| Video Input Ports | 8 VGA |
|---|---|
| Maximum Video Resolution | 2048×1536 @ 60 Hz |
| Audio Input | 8 Mini Stereo Jack (green) |
| Audio Output | 1 Mini Stereo Jack (green) |
| RS‑232 Interface | Bidirectional |
| Power Consumption | DC 5.3 V, 1.01 W |
| Dimensions (L×W×H) | 43.20 × 15.40 × 4.40 cm |
| Weight | 2.10 kg |
| Operating Temperature | 0‑50 °C |
| Storage Temperature | -20‑60 °C |
| Humidity Range | 0‑80 % RH |
| Rackmount Size | 1U |
| Video Input Connector | 8× HDB‑15 male |
It can switch among up to eight VGA video/audio sources.
The maximum supported resolution is 2048 × 1536 at 60 Hz.
Yes, it has a 1U rack‑mount design.
