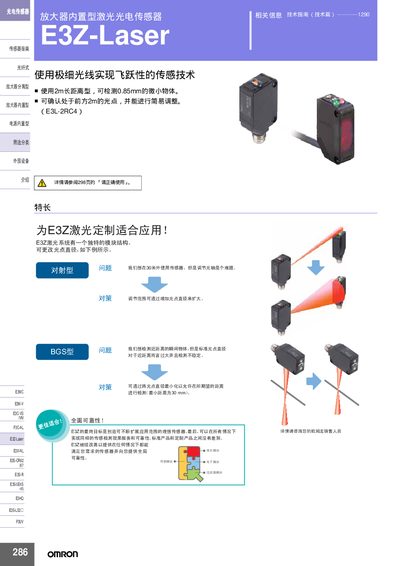

E3Z-Laser is an amplifier-built-in laser photoelectric sensor that uses a fine beam to achieve a revolutionary sensor technology. This sensor can detect micro-objects of 0.85mm and confirm a light spot 2m in front.
The E3Z-Laser is a high‑precision built‑in laser photoelectric sensor that can detect objects as small as 0.85 mm at distances up to 60 m for the long‑range version. The sensor offers adjustable light‑spot diameter, multiple output options (NPN/PNP), and IP67 protection for harsh environments.
This guide covers sensor fundamentals, amplifier and power‑supply configurations, peripheral devices, wiring and connector options, mounting accessories, environmental limits, and detailed technical specifications. It also includes adjustment procedures for the light‑spot size and recommended installation practices.
| Maximum detection distance (long‑range) | 60 m |
|---|---|
| Minimum detectable object (long‑range) | 0.85 mm |
| Response time | <1 ms |
| Power supply voltage | DC 12‑24 V ±10 % |
| IP protection rating | IP67 |
| Light source wavelength | 655 nm (red LD) |
The long‑range version can detect objects up to 60 m away.
It operates from a DC supply of 12 V to 24 V with a ±10 % tolerance.
The sensor is rated IP67, suitable for harsh environments.
