E5CN/E5CN-U is a new temperature controller from Toshiba. The product has many features, including analog input, 250ms fast sampling, transmit output function, voltage output, 3-point alarm output, three-phase heater line break detection, etc.

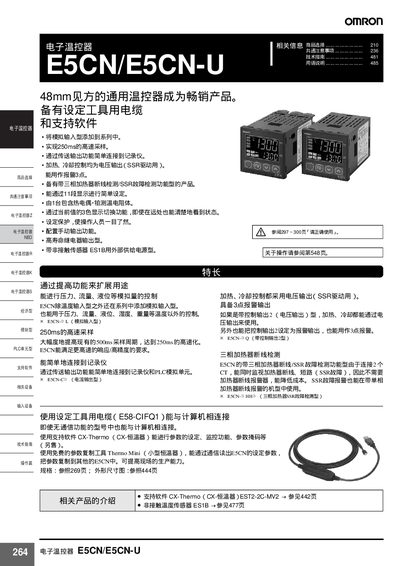

The Omron E5CN/E5CN-U electronic thermostat series offers versatile temperature control for industrial applications. The manual covers product selection, common precautions, and detailed technical guidelines for both the standard and optional modules.
Key sections describe the model structure, electrical specifications, communication options, wiring diagrams, installation procedures, and optional accessories such as USB‑serial cables and waterproof fittings. The document also includes performance data, environmental limits, and troubleshooting information. This manual is written in Chinese.
| Power supply voltage | AC100~240V 50/60Hz |
|---|---|
| Power consumption (E5CN) | 7.5VA (max) |
| Maximum heating current | 50A (AC50A) |
| Operating temperature range | -10 °C ~ +55 °C |
| Communication interface | RS‑485 (2‑wire half‑duplex) |
It uses an RS‑485 (2‑wire half‑duplex) interface for communication.
The device operates on AC 100 V to 240 V at 50/60 Hz.
It can handle up to 50 A of heating current.
The thermostat can be used in temperatures from –10 °C to +55 °C.
