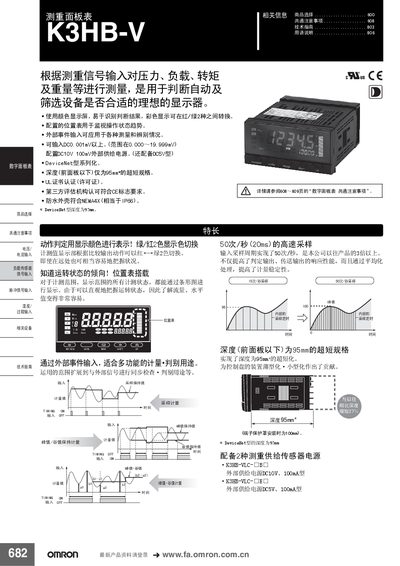

The K3HB-V weight panel meter is an ideal display for judging the suitability of automatic and screening equipment by inputting weight signal. The product has the characteristics of using a color display screen, external event input, 50 times/second (20 ms) high-speed sampling, and a depth of 95 mm (front panel below) for ultra-short specifications.
The K3HB‑V is a measured heavy panel table that provides digital weight display with color‑coded indicators and supports various external signal inputs for process control. It is designed for industrial environments with a compact 95 mm front‑panel depth and a NEMA4X (IP66) waterproof enclosure.
The manual covers safety information, power and signal specifications, wiring diagrams, configuration of event inputs, output types, and detailed operation procedures such as scaling, zero‑force, peak/valley hold, and data communication via DeviceNet, RS‑232, and RS‑485. This manual is written in Chinese.
| Panel depth | 95 mm |
|---|---|
| Enclosure rating | NEMA4X (IP66) |
| External supply voltage | DC10V 100mA |
| Rated load (AC) | AC250V 54A |
| Mechanical life | 5,000,000 cycles |
| Electrical life | 100,000 cycles |
The front‑panel depth is 95 mm.
It meets the NEMA4X (IP66) waterproof rating.
The rated load is AC250V at 54 A.
The device can be powered by an external DC10V supply at 100 mA.
