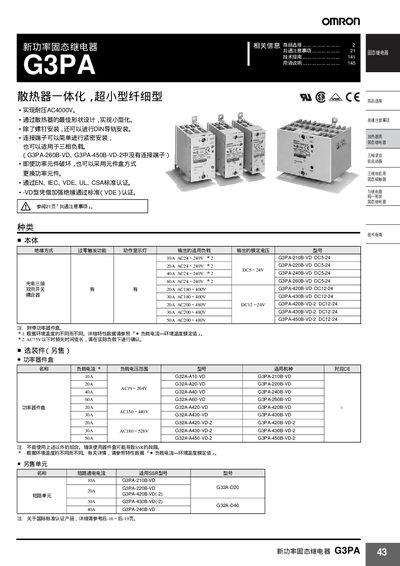

This manual provides specifications, installation instructions, wiring diagrams, and maintenance procedures for Omron G3PA series solid‑state relays.
The document describes the G3PA family of solid‑state relays, covering rated electrical characteristics, mechanical dimensions, and safety compliance. It includes tables of load current ratings, switching voltage limits, and isolation resistance, as well as detailed installation and wiring guidance.
Key sections cover common precautions, mounting methods (vertical and horizontal), terminal connection procedures, and replacement of power modules. The manual also lists the applicable international standards and provides troubleshooting tips for reliable operation. This manual is written in Chinese.
| Rated Load Current | 10 A AC 24‑240 V (G3PA‑210B‑VD) |
|---|---|
| Maximum Switching Voltage | 4000 V AC |
| Isolation Resistance | ≥100 MΩ (DC 500 V test) |
| Operating Temperature Range | -30 °C to +100 °C |
Up to three units can be installed; installing four or more requires a minimum 10 mm spacing between units.
