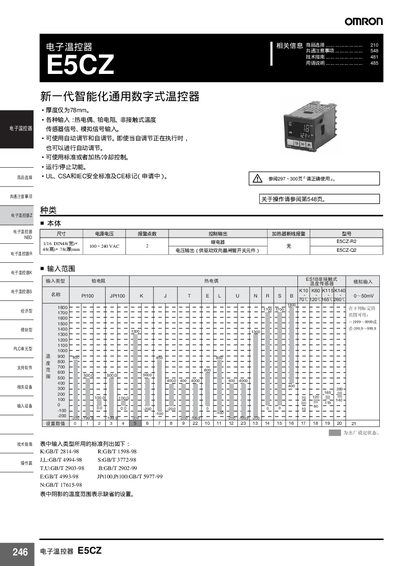

The E5CZ electronic temperature controller is a new generation of intelligent and universal digital temperature controller with a thickness of only 78mm. It supports various inputs, including thermocouples, platinum resistors, non-contact temperature sensors, and analog signal inputs.
This manual describes the features and technical specifications of the Omron E5CZ-R2 electronic thermostat, including rated voltage, power consumption, supported temperature sensors, and operating temperature range. It also explains how to connect the device and configure its PID or ON/OFF control modes.
Safety precautions, installation steps, and common usage notes are provided to ensure reliable operation in industrial environments. The document includes wiring diagrams, external connection details, and recommended handling procedures. This manual is written in Chinese.
| Rated input voltage | 100‑240 VAC |
|---|---|
| Supported temperature sensors | Pt100, JPt100 |
The thermostat is rated for 100‑240 VAC input voltage.
The device supports Pt100 and JPt100 temperature sensors.
