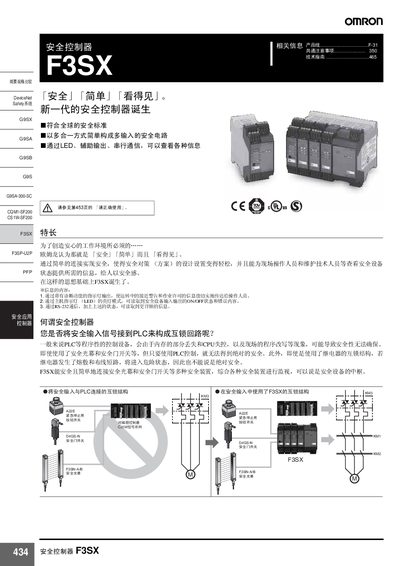

F3SX safety controller is a new generation safety controller from Omron, which has the characteristics of safety, simplicity and visibility. It realizes safety through simple connection, makes it easy to design and set safety countermeasures (solutions), and provides the information needed by on-site operators and maintenance technicians to view the status of safety devices, giving people a sense of security.
This manual introduces the Omron F3SX safety controller, a compact safety controller that integrates input, output and diagnostic LEDs. It describes how the controller simplifies safety circuit design, provides status monitoring via LEDs and RS‑232 communication, and meets international safety standards.
The document also lists the available modules, their dimensions and weights, shows wiring examples for safety light curtains, door switches and emergency‑stop buttons, and gives guidance on configuring delay times and output types. This manual is written in Chinese.
| Module size (F3SX‑NR) | 45.0 mm, approx. 0.3 kg |
|---|---|
| Module size (F3SX‑N‑D1R) | 90.0 mm, approx. 0.5 kg |
| Compliance | IEC61508, EN954‑1, EN50178, UL508, UL1998 |
It can be connected to safety light curtains, safety door switches, emergency‑stop buttons and other safety sensors.
