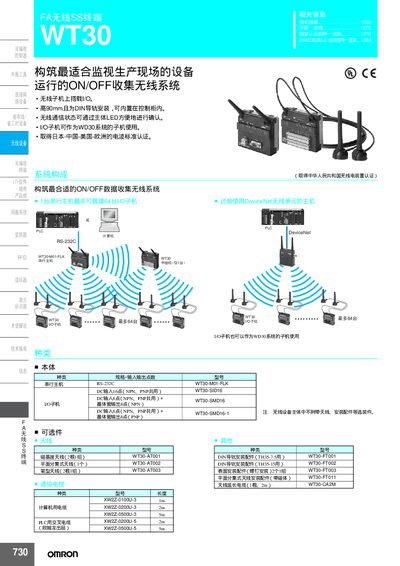

FA Wireless SS Terminal WT30 is a wireless data collection device produced by Omron. It uses the 2.4GHz frequency band low power data communication system SS wireless communication to realize the most suitable ON/OFF data collection for monitoring production site equipment operation.
The WT30 Wireless SS Terminal is a 2.4 GHz, low‑power data communication device designed for factory automation. It can be mounted on a DIN rail, supports up to 16 I/O points, and includes status LEDs for quick monitoring of wireless link health.
The manual covers hardware specifications, wiring diagrams, antenna options, communication settings (RS‑232C, DeviceNet, PLC), and troubleshooting procedures, helping users install, configure, and maintain the terminal in both indoor and outdoor environments. This manual is written in Chinese.
| Frequency band | 2401 MHz – 2480.2 MHz |
|---|---|
| Maximum communication speed | 100 kbit/s |
| Number of I/O points | 16 points (DC input, CNPN/PNP common) |
| Maximum indoor transmission distance | 60 m |
| Maximum outdoor transmission distance | 300 m |
| Number of selectable channels | 67 channels |
The WT30-MO1-FLK provides 16 DC input points that can be configured as CNPN or PNP.
It uses the 2.4 GHz band, specifically 2401 MHz to 2480.2 MHz.
The terminal supports 67 selectable channels, set via a switch.
