This product is a wireless transmission device that can be used to monitor the operation of equipment in the production site and collect ON/OFF data. The product features a wireless sub-unit with an I/O, a height of 90mm, and can be installed on a DIN rail or built into a control cabinet. In addition, the wireless communication status can be easily confirmed by the main unit LED.

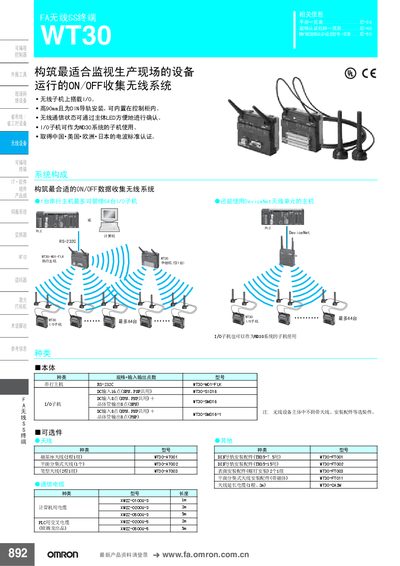

This manual describes the WT30 wireless SS terminal, a DIN‑rail‑mountable device for data collection and control in industrial environments. It covers hardware options, antenna accessories, power requirements, and environmental limits.
The document includes wiring diagrams, communication settings (RS‑232, COMPOWAY/F), LED status indicators, fault output behavior, and configuration procedures for both master (M) and slave (S) units. Technical specifications such as voltage, power consumption, I/O points, and wireless frequency are also listed. This manual is written in Chinese.
| Rated voltage | DC24V |
|---|---|
| Power consumption | ≤3.5 W |
| Wireless communication speed | 100 kbps |
| Frequency band | 2402‑2480 MHz |
| Maximum DC input points | 16 points |
| Maximum DC output points | 8 points |
The terminal is rated for a DC24 V power supply.
The wireless link operates at a data rate of 100 kbps.
It uses the 2402‑2480 MHz frequency band.
