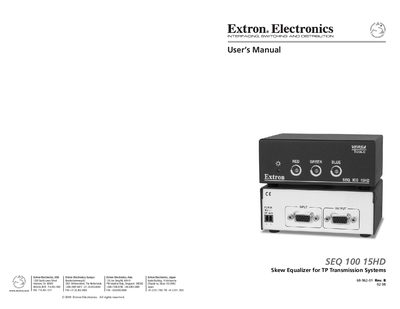

This document is a user manual for the Skew Equalizer for TP Transmission Systems by Extron Electronics. The product features the ability to adjust signal skew in TP transmission systems.
This manual introduces the Extron SEQ 100 15HD Skew Equalizer, a device that corrects pair‑skew in CAT‑5e/6 twisted‑pair video transmission. It explains how the three independent delay circuits can be adjusted from 0 to 39 ns to align red, green, and blue video signals.
The guide covers safety symbols, warranty information, and multiple mounting methods—including tabletop, rack‑mount, furniture, and projector‑bracket installations—plus power requirements and operating environmental limits.
| Power input | 12 VDC 0.2 A |
|---|---|
| External power supply | 100 VAC to 240 VAC, 50/60 Hz |
| Cooling | Convection, unvented |
